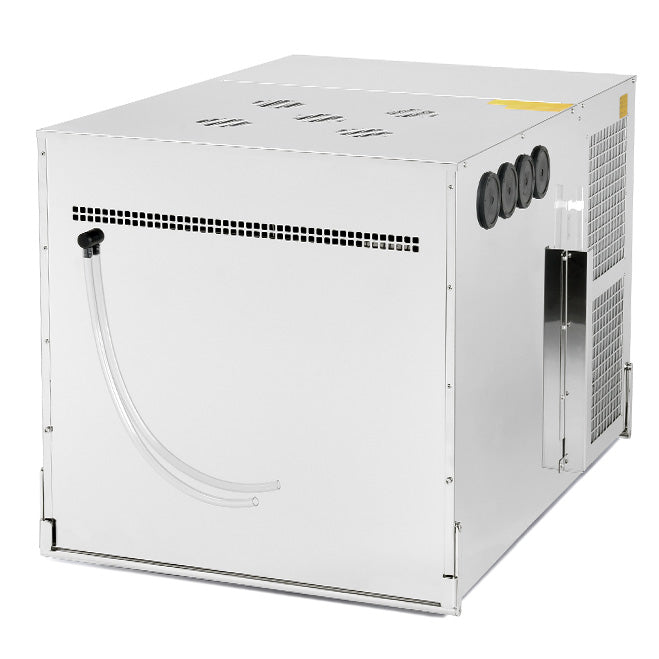

Lindr AS-450 Unlimited Green Line Cooling System
The Lindr AS-450 Unlimited Green Line is a professional cooling system designed for maximum flexibility and very high cooling capacity. The system is powered by a modern dual-circuit compressor system with a cooling capacity of up to 4000 W. Together with a large 144-liter water tank, the system can build an ice bank of up to 90 kg. This provides very stable and powerful cooling, even with continuous dispensing and high load.

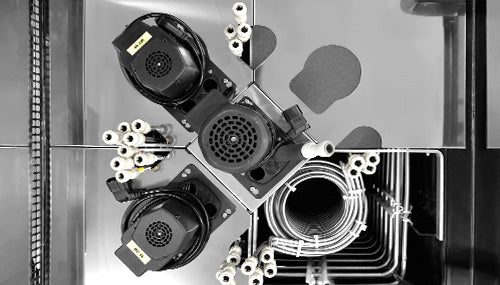

The AS-450 Unlimited can be used as a traditional beverage cooling system with up to 16 cooling coils, but also as a multifunctional cooling solution for larger installations. Standard equipment includes a central circulation pump with a head of 12 meters. For even greater flexibility, the system can be expanded with up to four additional pumps, allowing the number of dispensing points to be increased to a total of five.
The unit can also be adapted with a third cooling circuit with a glycol tank and temperature control down to minus 10 °C. Together with a powerful pump for long python cooling, this system is very well suited for extensive installations where beverages need to be cooled over longer distances.

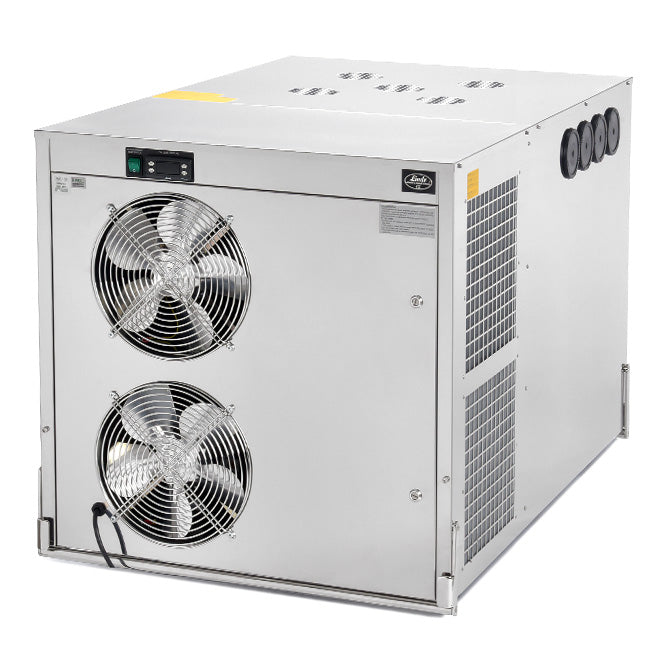

The digital thermostat provides precise control of the water temperature. When the temperature is set to minus 1 °C, the system operates in ice bank mode for maximum cooling effect. The unit is also equipped with a water level indicator and a drain valve for easy control and drainage.
The construction is made of stainless steel, which ensures a long lifespan, high durability, and easy cleaning. Robust folding handles and the option for industrial transport wheels make the system easier to move and handle at events and temporary installations.
As part of the Lindr Green Line series, the AS-450 Unlimited uses environmentally friendly R290 refrigerant. This provides high energy efficiency and lower power consumption, while the system delivers the performance that professional users expect.
Features
- Cooling capacity up to 450 liters per hour
- Continuous cooling performance up to 380 liters per hour
- Dual-circuit compressor system with up to 4000 W cooling capacity
- Large 144-liter water tank
- Ice bank of up to 90 kg
- Digital thermostat with precise temperature control
- Ice bank mode at minus 1 °C
- Standard circulation pump with 12-meter head
- Can be expanded with up to four additional pumps
- Option for up to five dispensing points
- Can be adapted with up to 16 cooling coils
- Option for a third cooling circuit with glycol tank
- Temperature control down to minus 10 °C with glycol setup
- Stainless steel construction
- Water level indicator and easy drainage
- Robust handles and option for industrial wheels
- Environmentally friendly R290 refrigerant
Applications
- Bars and restaurants
- Festivals and larger events
- Catering and mobile dispensing setups
- Breweries and beverage production
- Professional dispensing of beer, cider, wine, and other beverages
- Long python cooling in larger installations
- Technological cooling
Technical Details
- Model: AS-450 Unlimited Green Line
- Compressor cooling capacity: 2 x 2000 W
- Compressor: 2 x 3/4 HP
- Max cooling capacity: 450 liters per hour
- Continuous cooling performance: 380 liters per hour
- Temperature gradient: ΔT 10 °C
- Water tank: 144 liters
- Ice bank: 90 kg
- Circulation pump: 12 meters
- Recirculation connection: 1/2"
- Power: 1380 W
- Current: 6 A
- Voltage: 220–240 V / 50 Hz
- Net weight: 120 kg
- Refrigerant: R290
- Digital thermostat: Yes
