Description

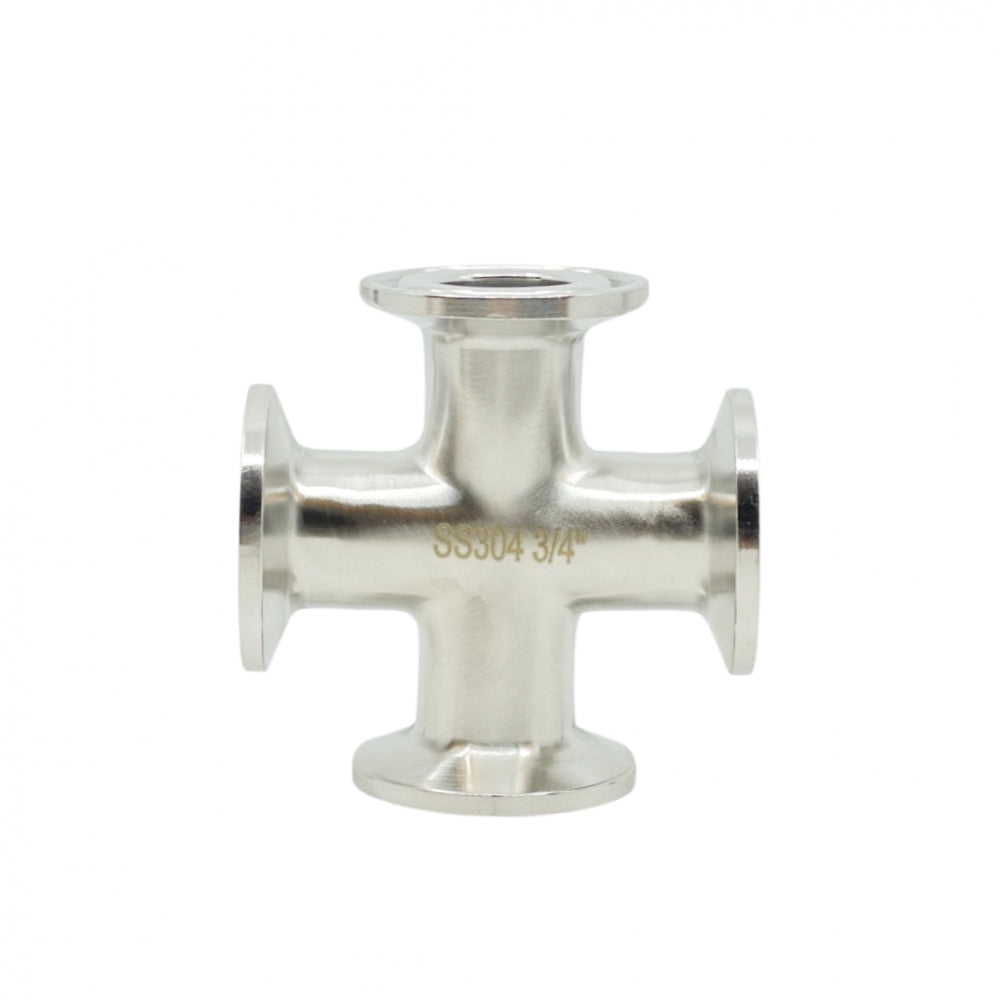

34mm Tri-Clamp cross – four-way fitting in stainless steel
Cross with four 34 mm Tri-Clamp connections from Brumetal, made of top-quality 304 stainless steel. A cross lets you join four lines at one point, for example to mount a thermometer, pressure gauge or valve on the same line. Each connection is secured with a clamp and gasket.
Technical data
- connections: 4 × 34 mm Tri-Clamp
- length: 60 mm
- material: 304 stainless steel
Frequently asked questions about the 34mm Tri-Clamp cross
Are clamps and gaskets included?
No. Each connection needs a 34 mm Tri-Clamp clamp and a 34 mm gasket, which are sold separately.
Does the cross fit 1.5" Tri-Clamp?
No. 34 mm and 1.5" Tri-Clamp have different ferrule sizes. We have a separate adapter from 34 mm to 1.5" Tri-Clamp.
