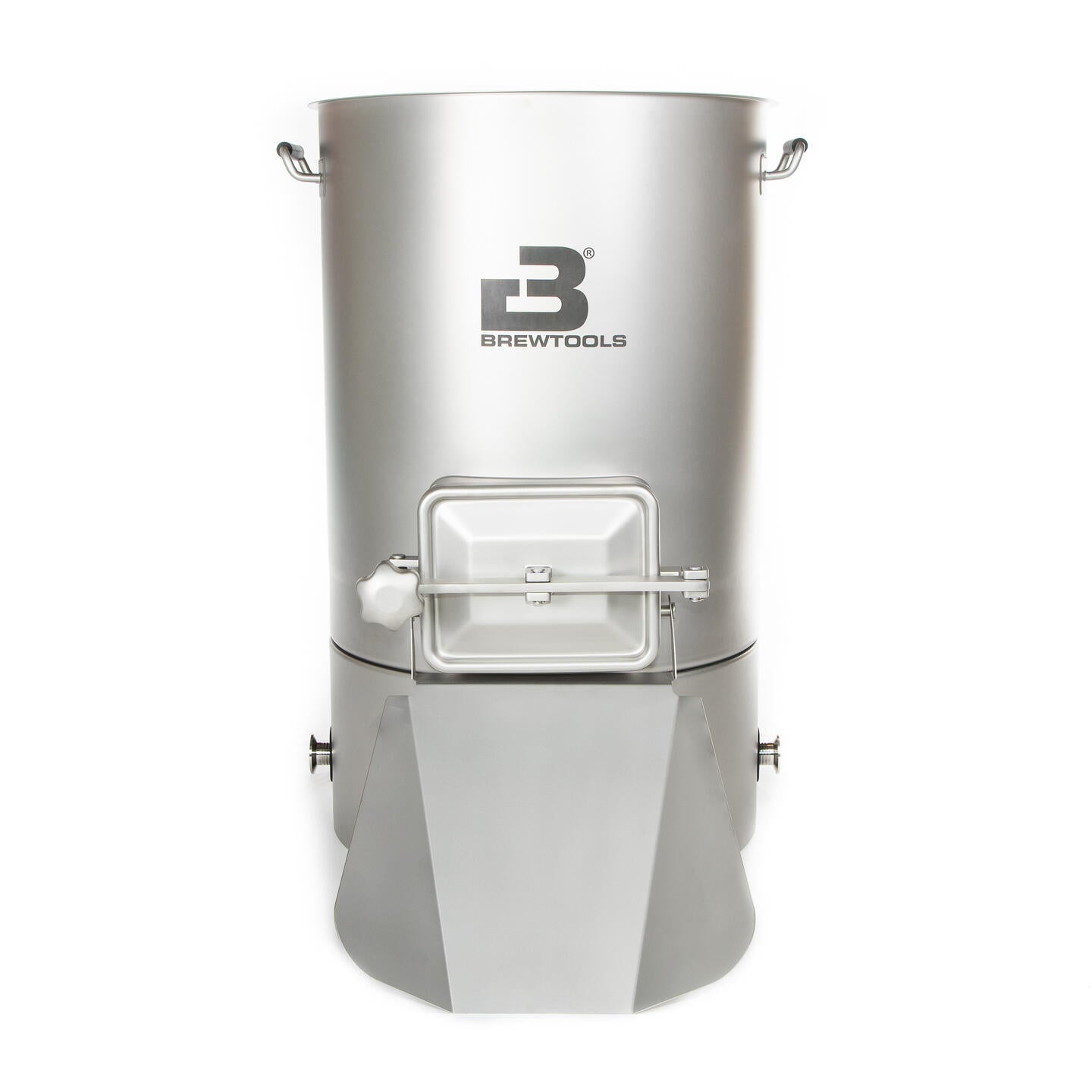

Brewtools B100 Mesketank, en bryggekjele i rustfritt stål med håndtak, logo og en frontluke som gir imponerende maltkapasitet, er avbildet mot en hvit bakgrunn.

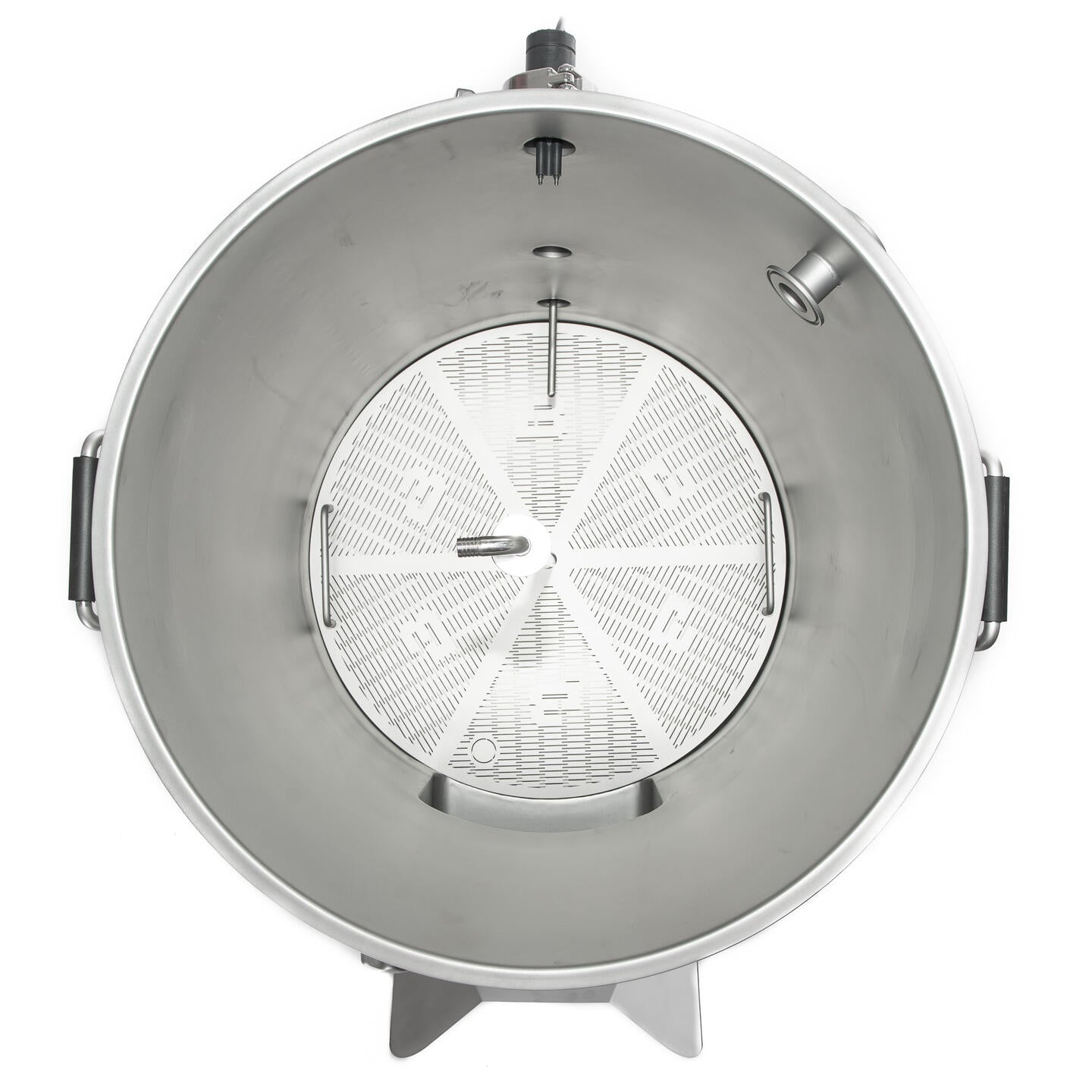

Oversiktsbilde av en tom Brewtools B100 Mesketank i rustfritt stål, utstyrt med falsk bunn, tappekran og to håndtak på sidene – utformet som en effektiv ekstern maltetank for å øke maltkapasiteten under bryggeprosessen.

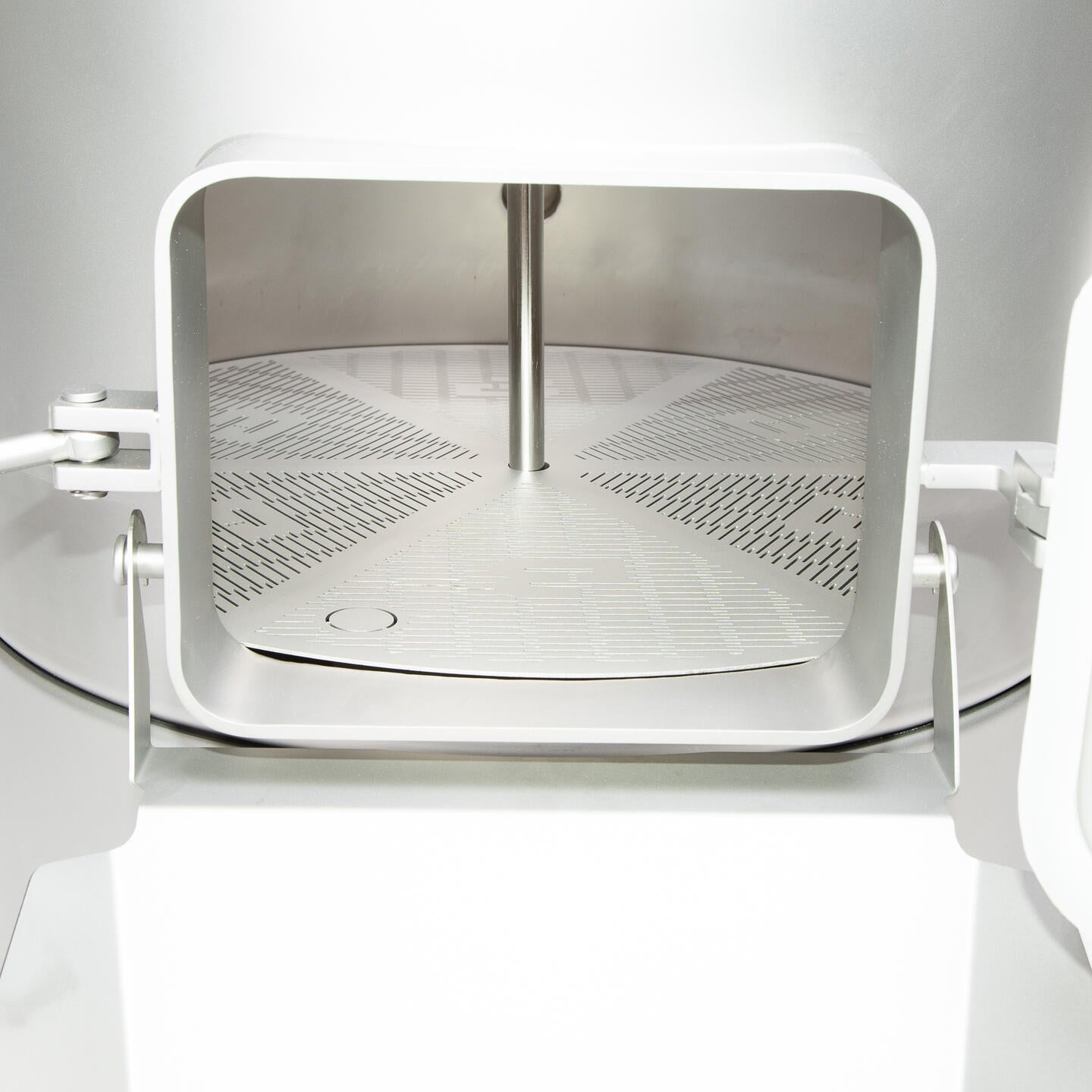

En nærmere titt inn i Brewtools B100 Mesketank viser den rektangulære åpningen, som avslører den perforerte, sirkulære platen og den sentrale stangen – sentrale funksjoner som er utformet for bruk i et bryggesystem med to kjeler.
Roll over image to zoom in Click on image to zoom
Brewtools B100 Mesketank, en bryggekjele i rustfritt stål med håndtak, logo og en frontluke som gir imponerende maltkapasitet, er avbildet mot en hvit bakgrunn.Oversiktsbilde av en tom Brewtools B100 Mesketank i rustfritt stål, utstyrt med falsk bunn, tappekran og to håndtak på sidene – utformet som en effektiv ekstern maltetank for å øke maltkapasiteten under bryggeprosessen.En nærmere titt inn i Brewtools B100 Mesketank viser den rektangulære åpningen, som avslører den perforerte, sirkulære platen og den sentrale stangen – sentrale funksjoner som er utformet for bruk i et bryggesystem med to kjeler.

Brewtools B100 Mash Tun

BrewtoolsSKU: 7751751860322

The Brewtools B100 Mash Tun is an external mash tun that expands the Brewtools B100 into an efficient 2-vessel brewing system. With 110 liters total capacity, 38 kg malt capacity, integrated FCS Brew Pump, CleanCore 3-way valve, and top-level sensor, you get improved capacity and easier mashing.

Price:
24.990,00 kr

Description

Brewtools B100 Mash Tun

The Brewtools B100 Mash Tun is an external mash tun designed for those who want to expand their Brewtools B100 into a more complete 2-vessel system. By moving the mashing to a separate tank, you get significantly increased malt capacity and a more efficient brewing process, while eliminating the need for a crane or lifting device for the malt pipe.

The mash tun has a total capacity of 110 liters and a malt capacity of up to 38 kg. This makes it well-suited for larger batches, stronger beers, and brews where standard malt pipe capacity becomes a limitation.

The tank comes with a door and a malt chute, so spent grain can be more easily emptied after mashing. This provides a more practical workflow and makes cleaning easier after brewing.

The integrated FCS Brew Pump connects to your B100 and is automatically controlled via an integrated top-level sensor. The wort is circulated over the grain via the center pipe, and the mash tun uses the same 3-way CleanCore valve at the bottom as the B100. This provides a neat, functional, and well-designed setup that fits well into the Brewtools system.

The B100 Mash Tun is made of 304 stainless steel with materials such as food-grade silicone, EPDM, and POK. This provides a robust and hygienic solution developed for serious homebrewing and small-scale production.

Features

Expands Brewtools B100 to a 2-vessel system
External mash tun for greater capacity
Malt capacity of up to 38 kg
Eliminates the need for a crane or lifting device for the malt pipe
Integrated FCS Brew Pump
Automatic pump control via top-level sensor
3-way CleanCore valve at the bottom
Wort circulation via center pipe
Door and malt chute for easier emptying of spent grain
Laser-cut filter included
Solid construction in 304 stainless steel
Developed for Brewtools B100

Applications

  • Brewtools B100 expansion
  • 2-vessel brewing system
  • Larger batches
  • Beers with high malt loads
  • More efficient mashing
  • Serious homebrewing
  • Small-scale brewery setup

In the box

  • B100 Mash Tun with lid and malt chute
  • Center pipe for B100 mash tun
  • Laser-cut filter for B100 mash tun
  • FCS Brew Pump TC 1.5"
  • CleanCore 3-way valve, TC 1.5"
  • Level Switch Sensor, TC 1.5"
  • Thermowell
  • Elbow, gaskets, Tri Clamps, and accessories

Technical details

  • Model: Brewtools B100 Mash Tun
  • Compatibility: Brewtools B100
  • Total capacity: 110 liters
  • Malt capacity: 38 kg
  • Tank dimensions: Ø500 mm
  • Height above filter: 565 mm
  • Full height: 835 mm
  • Volume above filter: 111 liters
  • Material: 304 stainless steel
  • Other materials: Food-grade silicone, EPDM, and POK
  • Connections: TC 1.5"
  • Pump: Integrated FCS Brew Pump
  • Valve: CleanCore 3-way valve
