Description

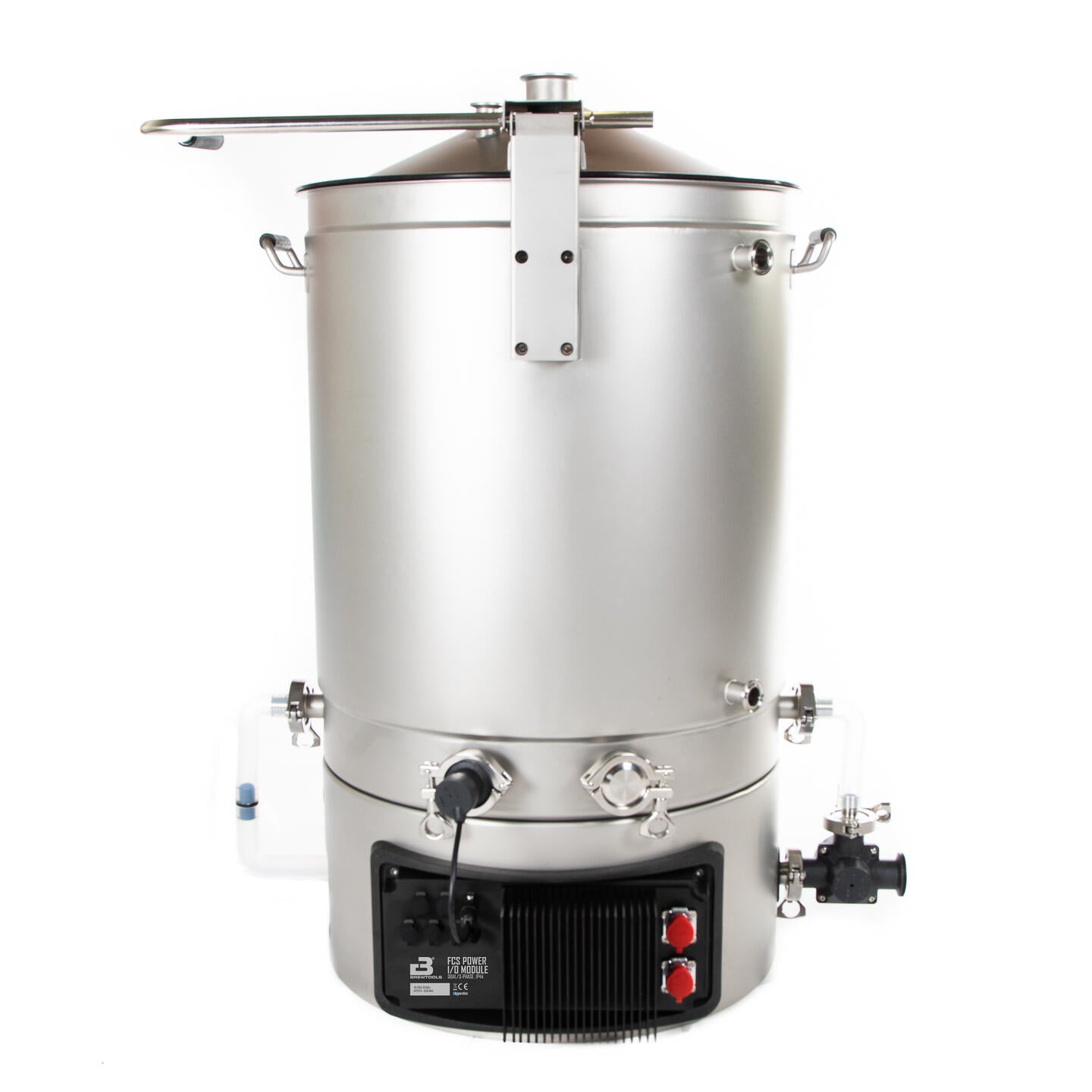

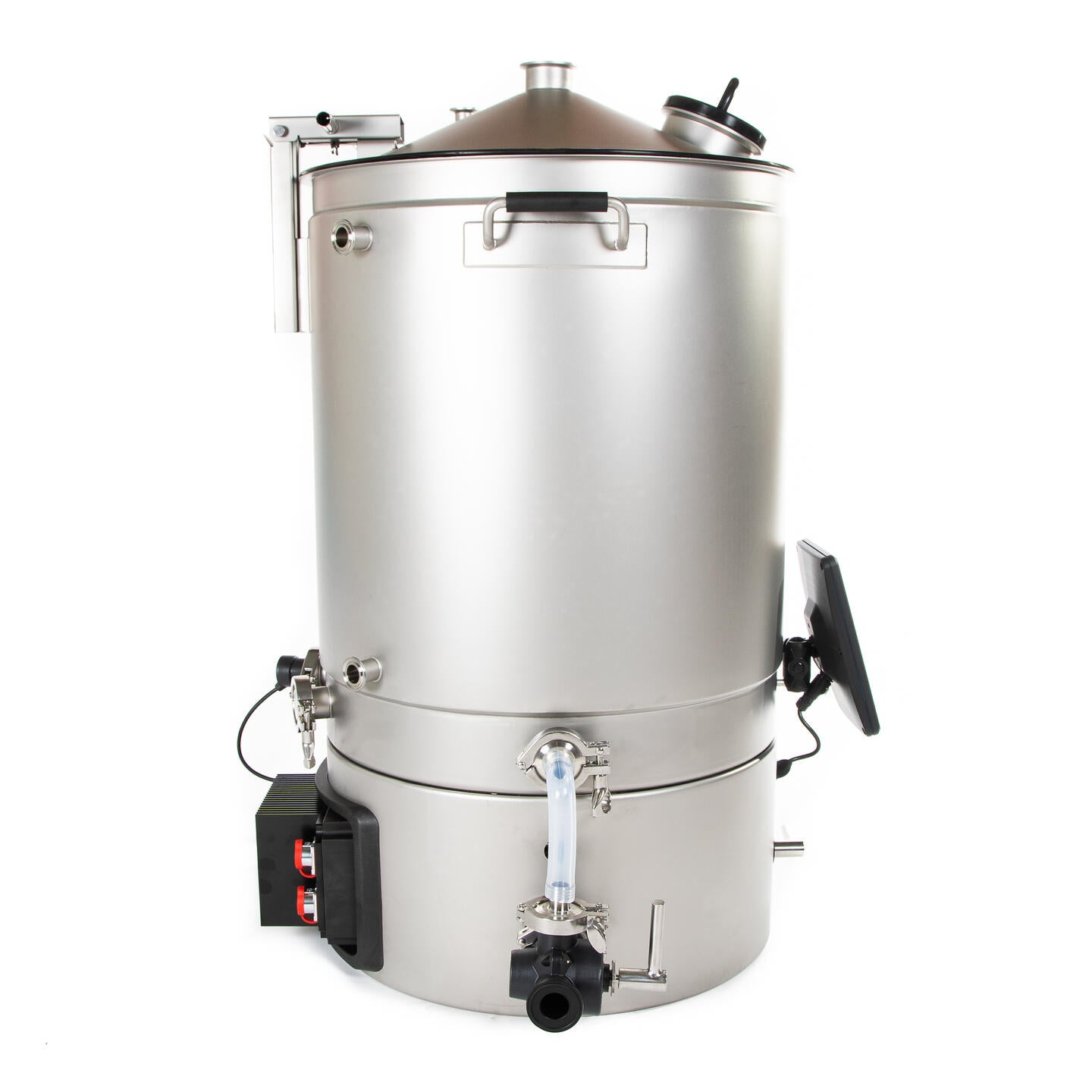

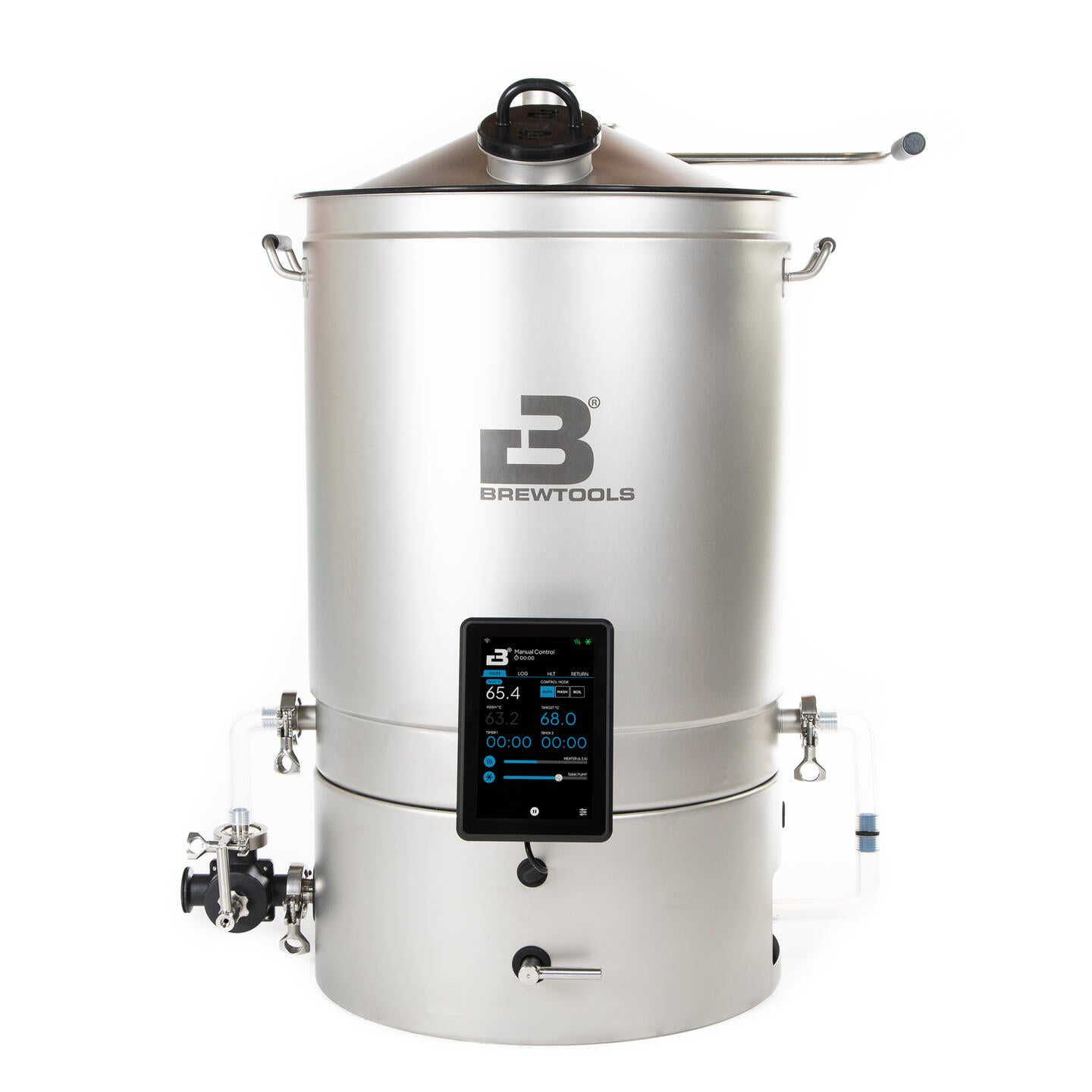

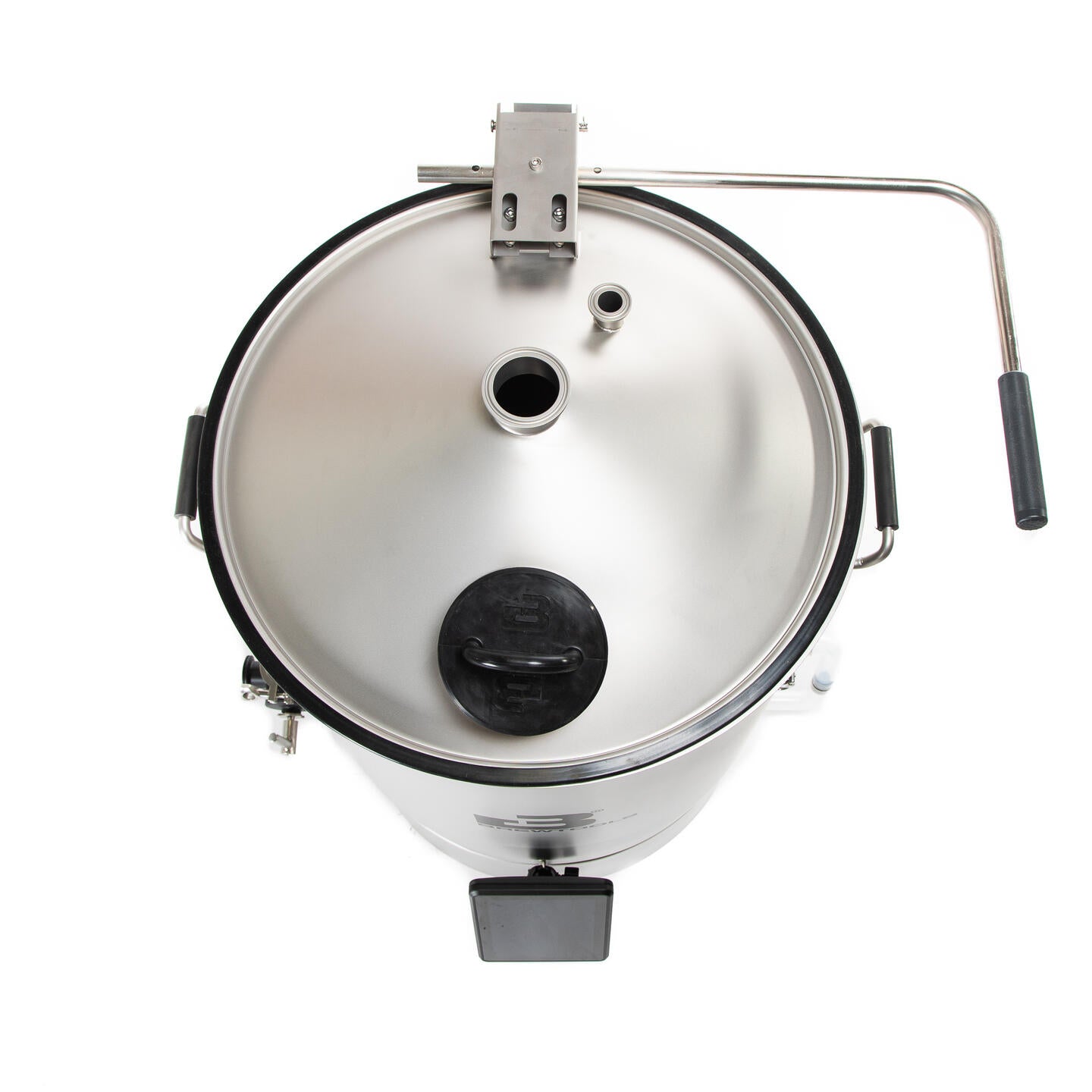

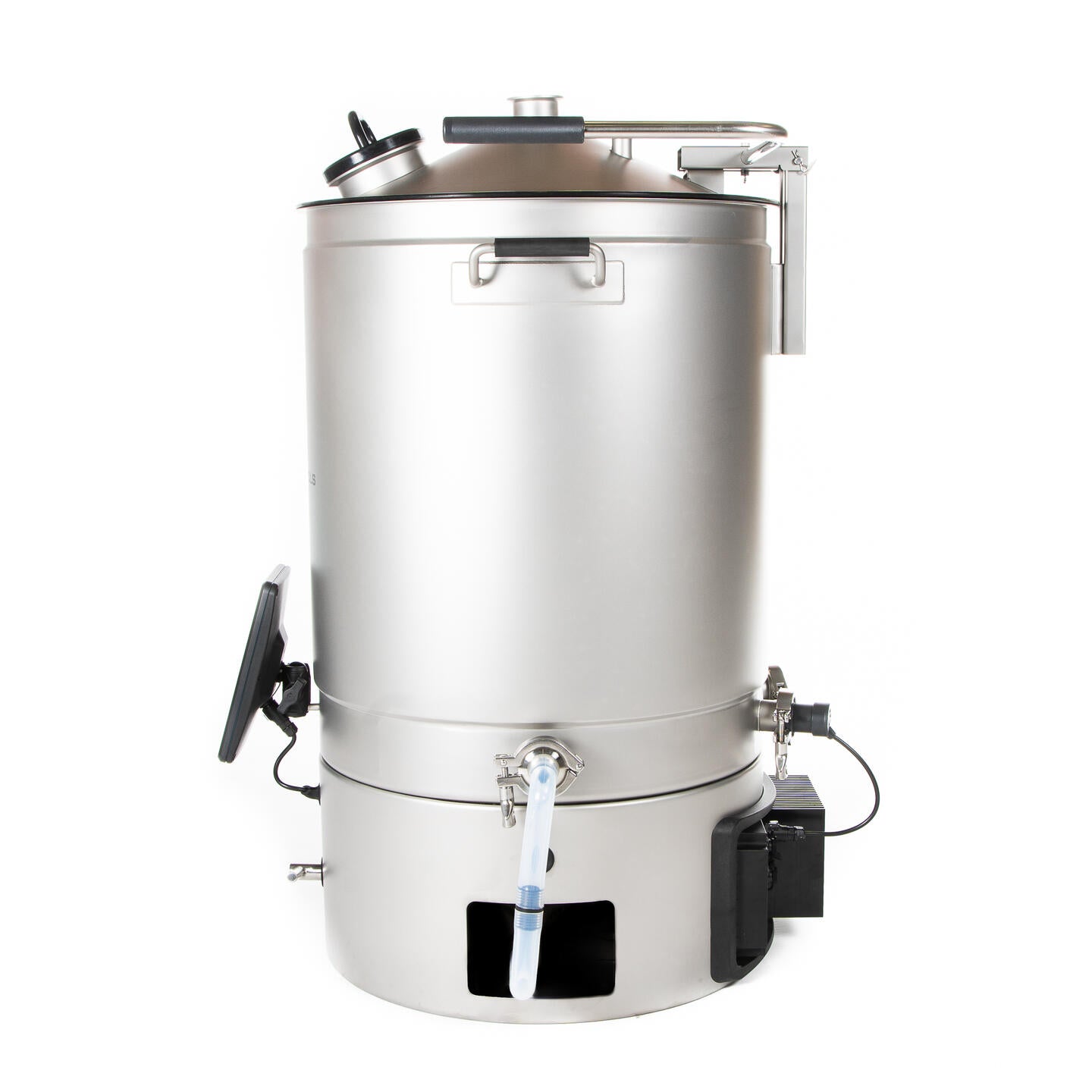

Brewtools B100 Brewing System 2x230V 6kW – brewing machine with 100 litres pre-boil
The Brewtools B100 Brewing System is an all-in-one brewing machine for experienced home brewers, brewing clubs and small production setups that want more capacity without moving to a traditional multi-vessel system. It has a 100 litre pre-boil volume and is designed and developed in Norway.
This model runs on 2x230V with 6 kW of heating power and can be used where you have two separate 230 V circuits. The B100 has a 10° conical bottom and indirect heating, which gives even heat distribution and less risk of scorching. The conical bottom also makes trub handling, whirlpool and cleaning easier.
The machine has an integrated FCS pump and is controlled by the FCS Brewing control system with an 8" high-resolution touch screen. Connections are 1.5" Tri-Clamp, and the bottom valve and drain/whirlpool valve are 3-way CleanCore valves, giving you control over recirculation, transfer, draining and whirlpool. The articulated steam hood is included. The B100 can be expanded with the Brewtools B100 Mash Tun for greater grain capacity.
Remember power cables for your region (sold separately).
In the box
- B100 brewing machine with malt pipe and steam hood
- Malt pipe with laser-cut filter
- 1 CleanCore 3-way valve
- Silicone hoses for draining and recirculation
- Parts and accessories for assembly
- Mash sensor (probe with 2 m cable)
Features
- 100 litre pre-boil volume
- 2x230V, 6 kW heating power
- 10° conical bottom and indirect heating
- Integrated FCS pump
- FCS Brewing control system with 8" high-resolution touch screen
- 1.5" Tri-Clamp connections
- Bottom valve and drain/whirlpool valve, 3-way CleanCore
- Articulated steam hood included
- Can be expanded with an external mash tun with pump
- Designed and developed in Norway
Specifications
- Voltage: 2x230V
- Current: 2 x 15 A
- Power: 6 kW
- Volume: 100 litres pre-boil
- Bottom: 10° conical
- Heating: indirect
- Pump: integrated FCS pump
- Connections: 1.5" Tri-Clamp
- Control system: FCS Brewing, 8" touch screen
- System height with steam hood: 950 mm
- Tank: Ø500 mm, height 600 mm (117.81 litres)
- Malt pipe: Ø415 mm, height 565 mm (76.42 litres)
- Power cables: sold separately
Remember and recommended accessories
- Power cables
- Fittings for the cooling jacket (kit or custom setup)
- Troll table with crane
Frequently asked questions about the Brewtools B100
What power supply does the B100 need?
This version runs on 2x230V and draws 2 x 15 A, so you need two separate 230 V circuits. The power cables are sold separately.
Can I increase the grain capacity?
Yes. With the Brewtools B100 Mash Tun you move the mash to a separate tank and get a grain capacity of up to 38 kg.

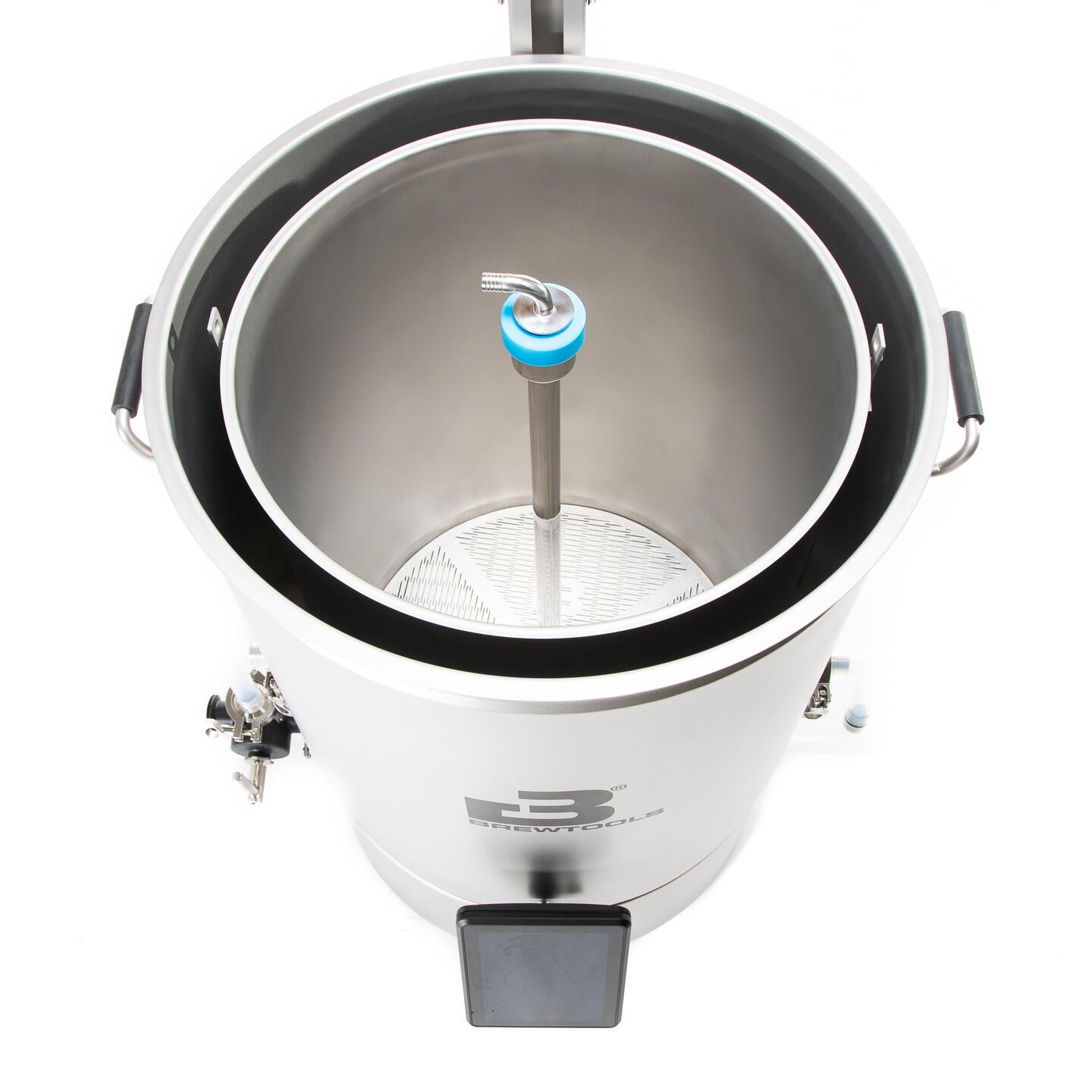

How large is the malt pipe?
The malt pipe is Ø415 mm and 565 mm high, which equals 76.42 litres. The tank is Ø500 mm and 600 mm high.
What mash temperature should I use?
A typical mash temperature is 63–68 °C. Lower temperatures give a drier beer, higher ones more body. It is a good idea to check the temperature with a separate thermometer.
