Description

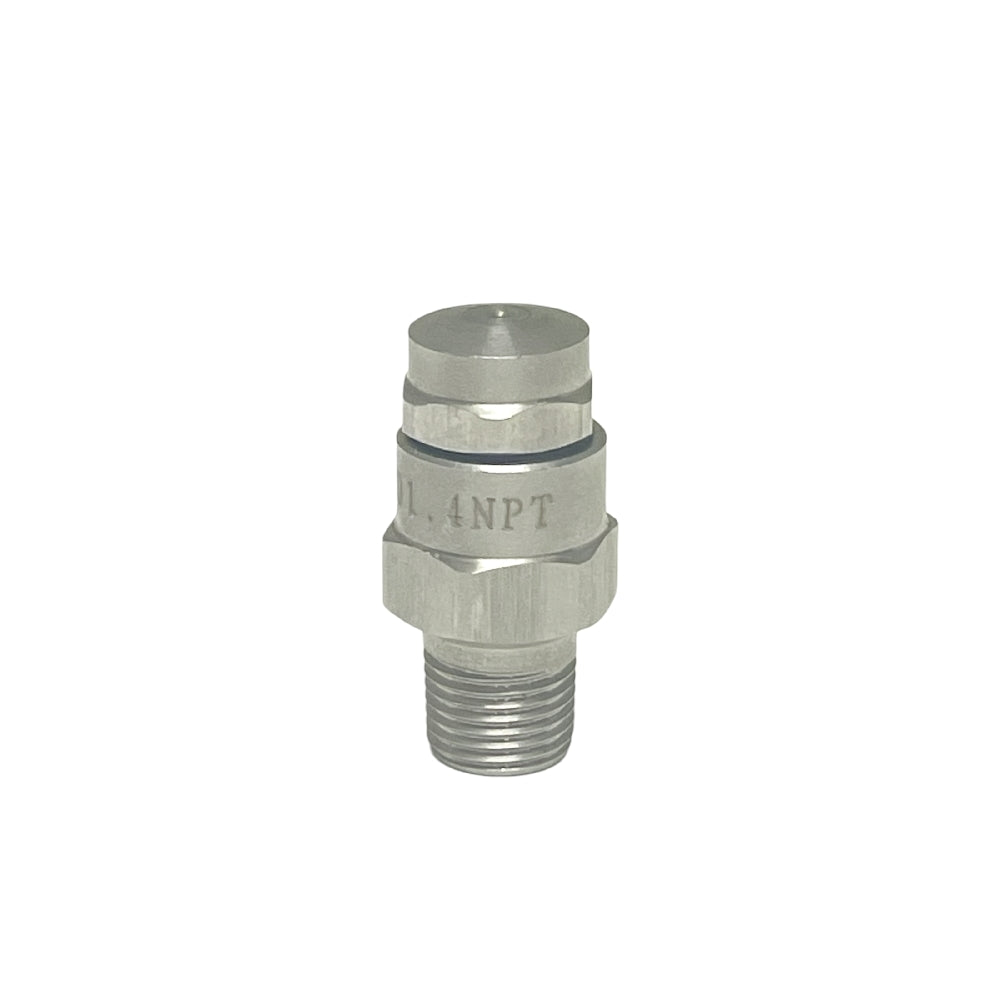

Steam condenser nozzle, 0.64 l/min – spare spray nozzle
Spare spray nozzle for the Grainfather steam condenser. The nozzle sprays cold water in a 30° fan inside the condenser, so the steam from the boil condenses and is carried away instead of filling the room. At 4 bar water pressure the nozzle delivers 0.64 litres per minute.
Technical data
- Spray pattern: 30°
- Flow: 0.64 l/min at 4 bar
- Thread: 1/8" NPT
Frequently asked questions about the 0.64 l/min steam condenser nozzle
What is the difference between 0.64 and 1.1 l/min?
The 0.64 l/min nozzle uses less water. The 1.1 l/min nozzle delivers more water and therefore more cooling in the condenser.
Can I use the nozzle in my own condenser?
The nozzle has 1/8" NPT threads. With a 1.5" Tri-Clamp adapter to 1/8" FPT it can be fitted in a Tri-Clamp port.
