Elmega two-chamber plate chiller 3000 l/h – wort chiller for breweries

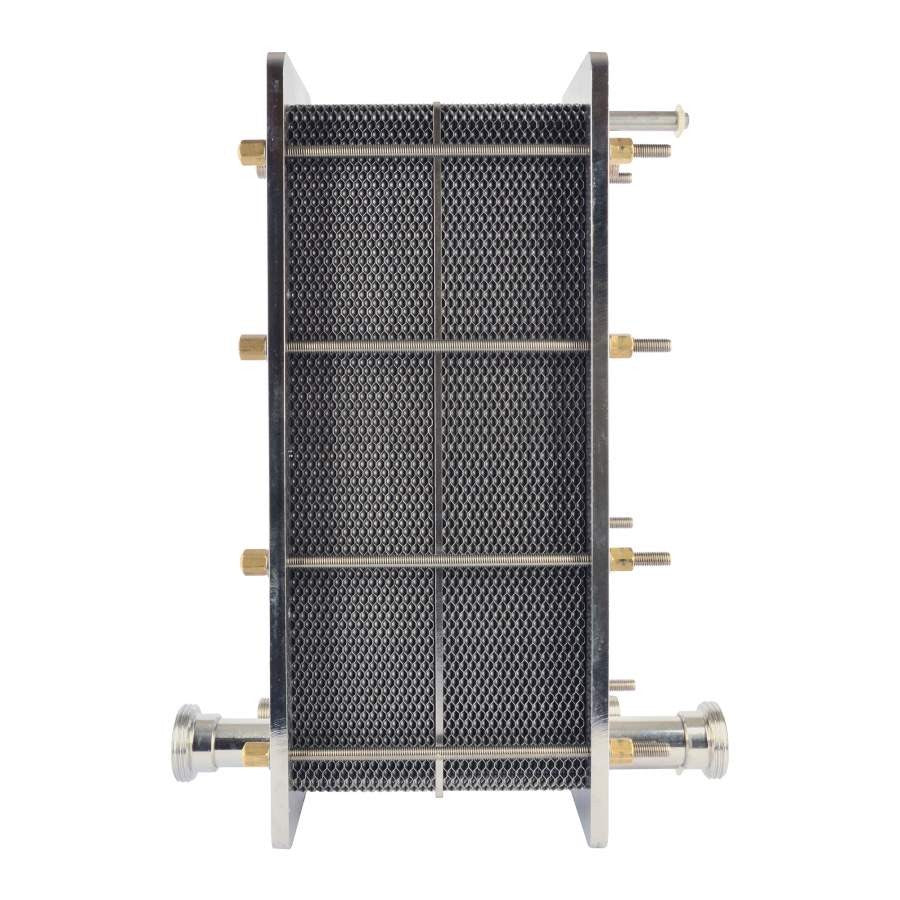

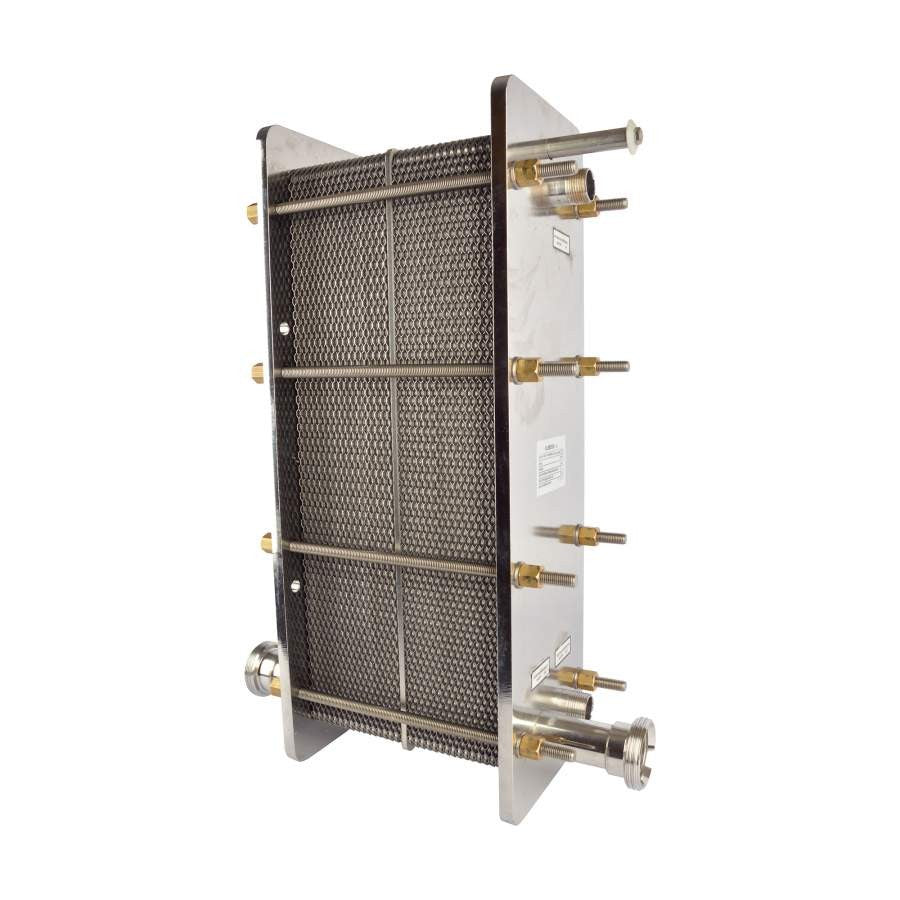

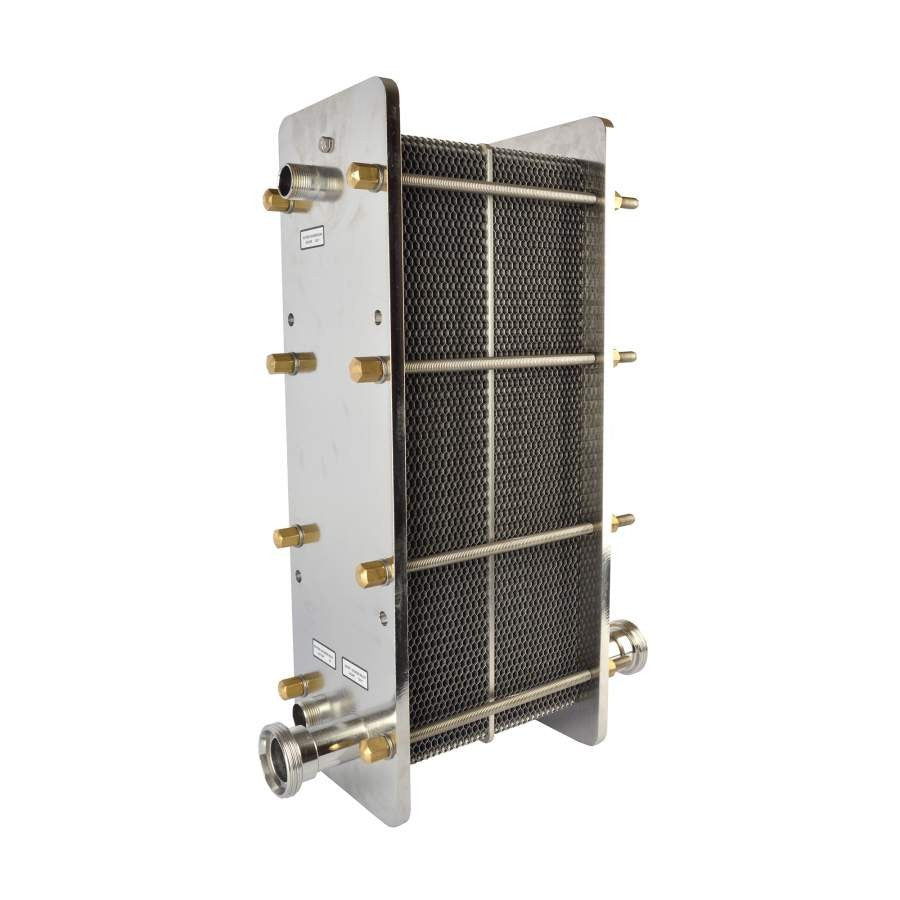

A professional plate chiller from Elmega in Spain, made to cool the wort quickly after the boil. The chiller has 94 plates and two chambers, each with its own cooling water connection. It is made of AISI 316 stainless steel and can be cleaned with CIP.
Please note: This product is only available in Norway.
The chiller is made to order with a delivery time of about 1 month, and the price is on request. Contact us for a quote.
Features
- 94 plates
- Two chambers with separate cooling water connections
- AISI 316 stainless steel
- Nitrile gaskets
- CIP cleaning possible
Technical data
- Max capacity: 3600 l/h from 95 °C to 2 °C above the cooling water temperature
- Dimensions: 68.5 x 25 x 39 cm

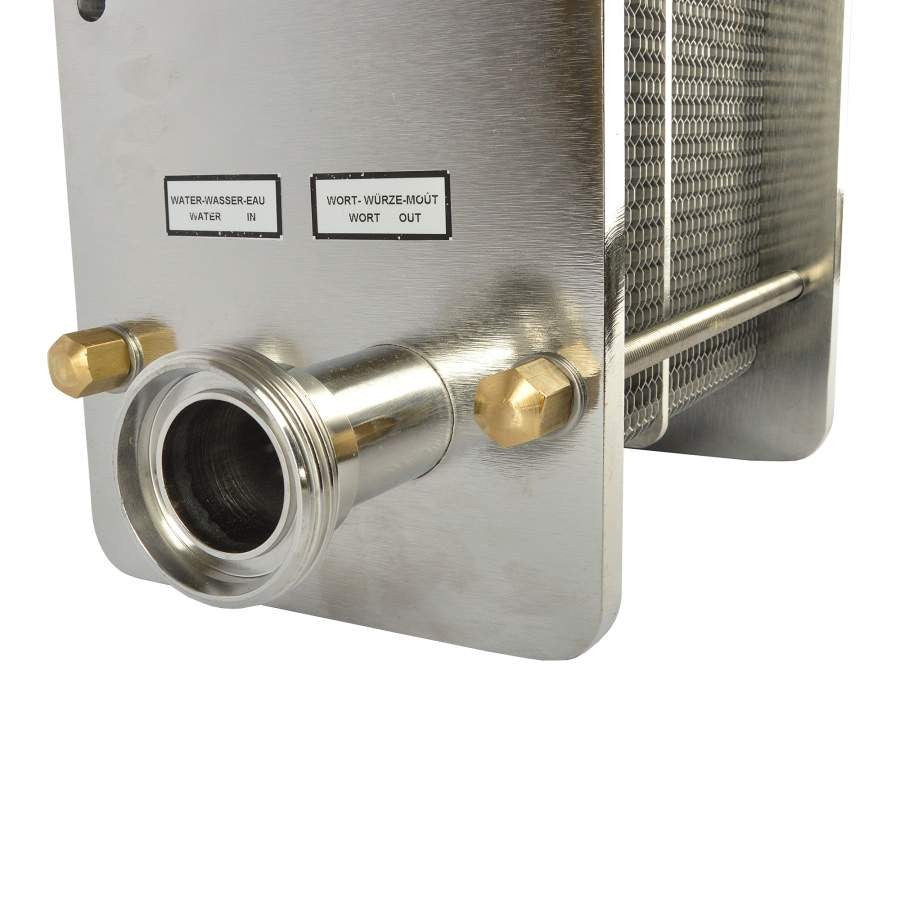

- Wort connection: DN40 (DIN 11851)

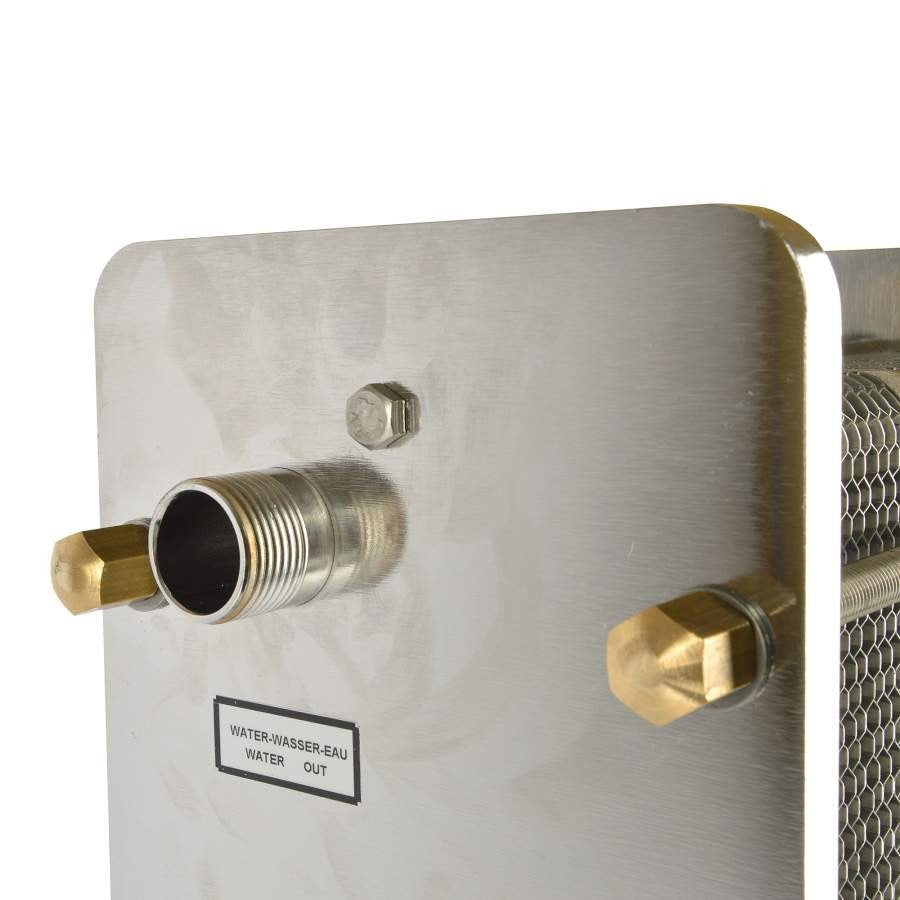

- Cooling water: 2 x inlet and outlet, 1" BSP
- Manufacturer: Elmega, Spain
Frequently asked questions about the Elmega plate chiller 3000 l/h
How cold does the wort get?
The chiller brings the wort from 95 °C down to 2 °C above the cooling water temperature. With cooling water at 10 °C, 12 °C is the lowest you can reach.
How much wort can it handle per hour?
Maximum capacity is 3600 litres per hour from 95 °C to 2 °C above the cooling water temperature.
Can the chiller be cleaned with CIP?
Yes, the plate chiller can be cleaned with CIP (Cleaning in Place).
What is the delivery time?
The chiller is made to order with a delivery time of about 1 month.
