Description
200L Speidel #Braumeister (BM200)
Order item, normally 2 weeks delivery time.
This fully automatic brewing system helps you brew individually tailored recipes and carries out all brewing phases with precise times and temperatures. Rinsing is easy and quick by lifting the malt pipe with the included lifting device.
In addition, the unit is mobile and easy to move, and the space requirement is minimal. This makes it ideal for restaurants, pubs, events or brewing teams. The relatively low purchase cost and a lower price per liter ensure a short payback period.
- Manufactured in Germany from stainless steel
- Capacity: 200 liters of finished beer (normal beer) = approx. 230 liters of wort for fermentation.
- Maximum malt quantity: 42 kg
New touchscreen control panel
The new automatic control system brews with your own individual recipes and guides you through the brewing process. Recipes and software updates can be automatically synchronized with the integrated wifi. Time and temperature are precisely maintained throughout all brewing phases. The new touchscreen makes operating the Braumeister even easier.
In addition, the large Braumeister models have integrated new pressure sensor-controlled pump regulation. The pressure sensor in the pressure line, which is connected to the mash pipe, allows you to regulate the pump speed via the pressure. The new timer function saves time because, for example, the brewing water can be heated early in the morning.
Advantages of #Braumeister 200L:
- New control system with touchscreen, integrated brewing guide and Wifi for software updates and recipe synchronization
- Pressure sensor-controlled pump regulation
- Comes with a lifting crane for the malt pipe
- Software:
- Brewing guide – also shows quantity and type of raw materials
- Precise temperature measurement
- Help information in the brewing process
- Adjustable pump pauses
- Integrated Wifi for wireless software updates and recipe synchronization with MySpeidel
- Integrated raw material database
- Timer function – for delayed start of brewing
- Fermentation control allows data from Tilt hydrometer
- Hardware:
- IP 65 waterproof
- 5" touchscreen
- Additional 24V and CAN connections for future accessories
- Integrated Wifi and Bluetooth
Technical details
- Heating element: 3 x 3,000 W output
- Pump: 370 W
- Power connection: 400 V (fuse min. 16 Amp)
- Total power consumption: 10 kW
- Cooling: 1.3 m² external cooling jacket, with ice water, approximately 50 min to 25 °C with whirlpool
- Control system: Fully automatic brewing control (temperature, time, pump)
- Maximum malt quantity: 42 kg

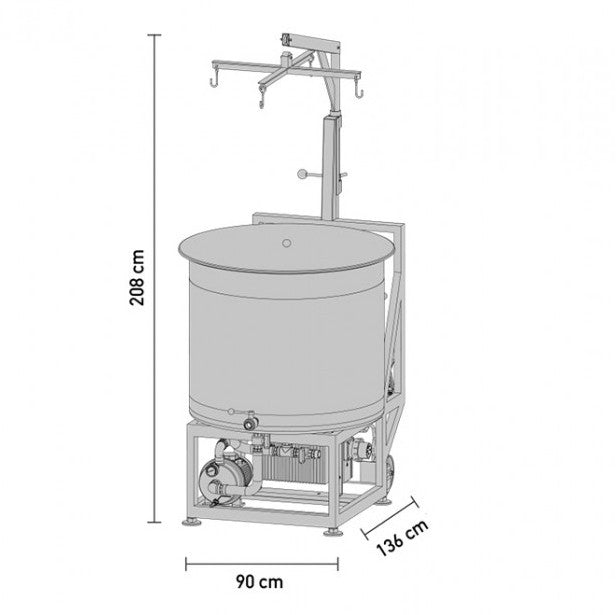

Dimensions BM200
- Length: 136 cm
- Width: 90 cm
- Height: 210 cm
- Wooden box: 132 x 100 x 175 cm (length x width x height)
- Shipping weight: 200 kg
