Description

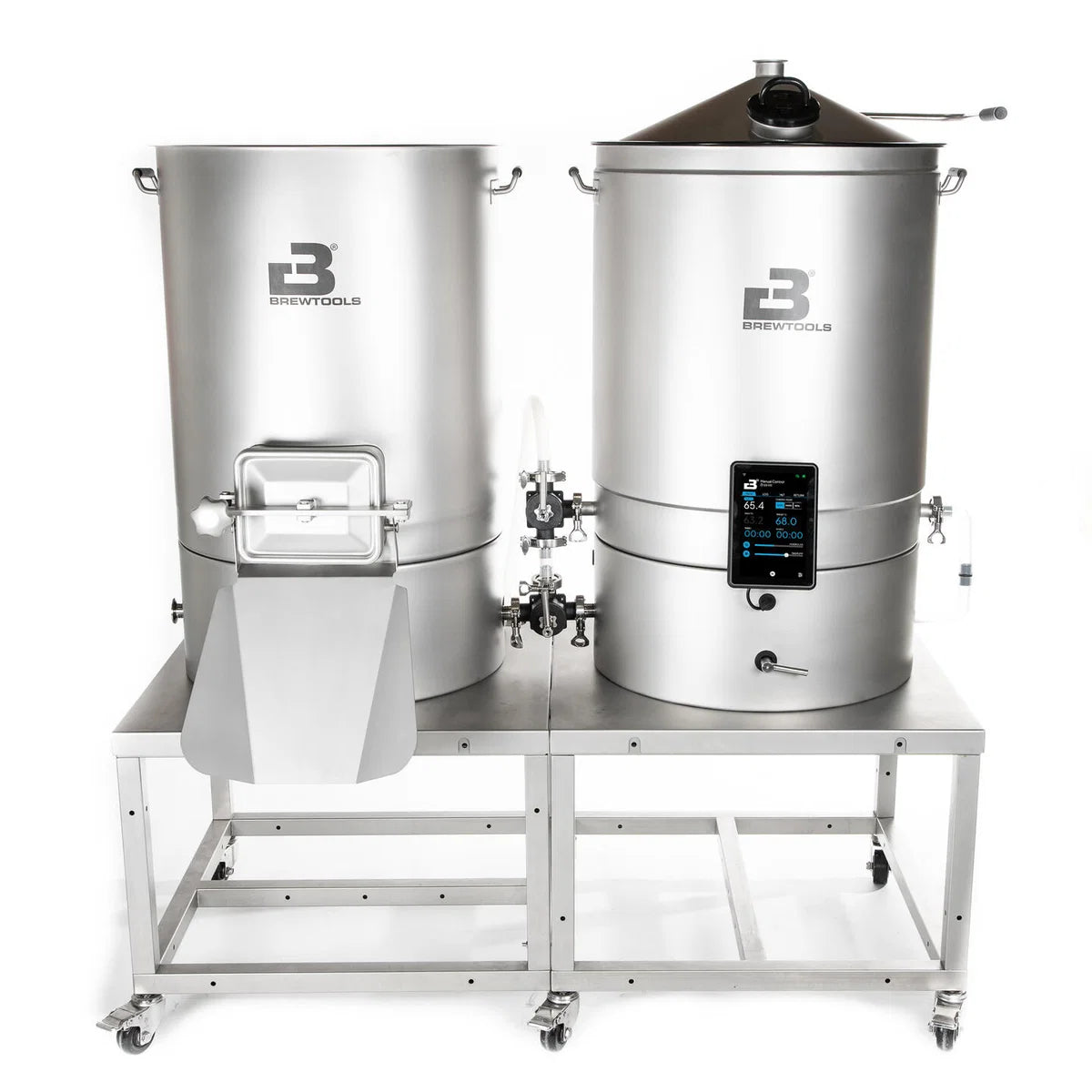

Brewtools B180 Brewing System 2x230V 6.6kW – brewing machine for 30–180 litres
The Brewtools B180 is an all-in-one brewing machine for serious home brewers, brewing clubs, pilot breweries and smaller microbreweries that need more capacity and a more professional setup. The system has a total capacity of 197 litres, is designed for batches from 30 to 180 litres and takes up to 45 kg of grain.
The B180 has a 10° conical bottom and indirect heating, which gives even heat distribution and easy cleaning. The integrated cooling jacket chills the wort efficiently, and the included whirlpool setup gives better yield and cleaner separation of trub and hop debris.
The machine is controlled by the FCS Brewing control system with an 8" IPS touch screen. It uses PT1000 temperature sensors and communicates via CAN bus. The screen connects with a single cable and has a ball mount, so it can be placed wherever suits you. Wort flow from the FCS Brew Pump is controlled by the patented CleanCore 3-way valve from the front of the machine. TC ports on the side make it easy to expand with, for example, sparge water, external cooling or a bypass.
The malt pipe hangs from a hinged mount and can be tilted for easier emptying. For greater grain capacity the B180 can be expanded with the Brewtools B180 Mash Tun.
Remember power cables for your region (sold separately).
In the box
- B180 brewing machine with malt pipe and steam hood
- Malt pipe with laser-cut filter
- 1 CleanCore 3-way valve
- Silicone hoses for draining and recirculation
- Parts and accessories for assembly
- Mash sensor (probe with 2 m cable)
Features
- Batch size from 30 to 180 litres, total capacity 197 litres
- Grain capacity up to 45 kg
- 10° conical bottom and indirect heating
- Integrated cooling jacket
- Whirlpool setup included
- Tilting malt pipe for easier emptying
- FCS Brewing control system with 8" IPS touch screen and PT1000 sensors
- FCS Brew Pump, 30 litres per minute
- Patented, hygienic CleanCore 3-way valves
- TC 1.5" valves and connections, 2 side ports for expansion
- Temperature and liquid level sensor, with dry-boil and low-level protection
- Can be expanded with an external mash tun and a counterflow chiller
- 5-year warranty
Specifications
- Type: all-in-one brewing machine
- Batch size: 30–180 litres
- Total capacity: 197 litres
- Grain capacity: 45 kg
- Tank: Ø600 mm, height 700 mm
- Malt pipe: Ø500 mm, height 660 mm (129.6 litres)
- Heating power: 6600 to 10000 W depending on model (this model: 6.6 kW on 2x230V)
- Control system: FCS Brewing, 8" IPS touch screen
- Wireless: Wi-Fi 2.4 GHz 802.11ax/b/g/n
- Pump: Brewtools FCS Brew Pump, 30 litres per minute, 4.5 metre head
- Materials: 304 stainless steel, food-grade silicone, EPDM and POK
- Valves and connections: TC 1.5"
- Cooling jacket: TC 34 mm
- System height with steam hood: 1100 mm
- Safety: overheat protection, dry-boil protection and liquid level sensor
- Warranty: 5 years
Remember and recommended accessories
- Power cables
- Fittings for the cooling jacket (kit or custom setup)
- Troll table with crane (extra-low model)
Frequently asked questions about the Brewtools B180
How large batches can I brew?
The B180 is designed for batches from 30 to 180 litres. Total capacity is 197 litres, and the malt pipe takes up to 45 kg of grain.
Can I chill the wort in the machine?
Yes. The B180 has an integrated cooling jacket with a TC 34 mm connection. A counterflow chiller can be added as an accessory.
Can I increase the grain capacity?
Yes. With the Brewtools B180 Mash Tun you move the mash to a separate tank and get a grain capacity of up to 65 kg.
Are the power cables included?
No. The power cables are sold separately, so you get the right cable for your region.
What mash temperature should I use?
A typical mash temperature is 63–68 °C. Lower temperatures give a drier beer, higher ones more body. It is a good idea to check the temperature with a separate thermometer.
