Speidel #Braumeister 100L (BM100) – brewing system for 100–120 litres of finished beer
The Speidel Braumeister 100L is a brewing system for brewing larger batches with professional precision, whether you run a small brewpub or are an ambitious homebrewer. With a capacity of up to 100–120 litres of finished beer, you get a user-friendly, flexible brewing system that one person can operate alone, without a hoist or lifting equipment. Made in Germany.
Please note: This product is only available in Norway.
Made to order, normally 2 weeks delivery time.

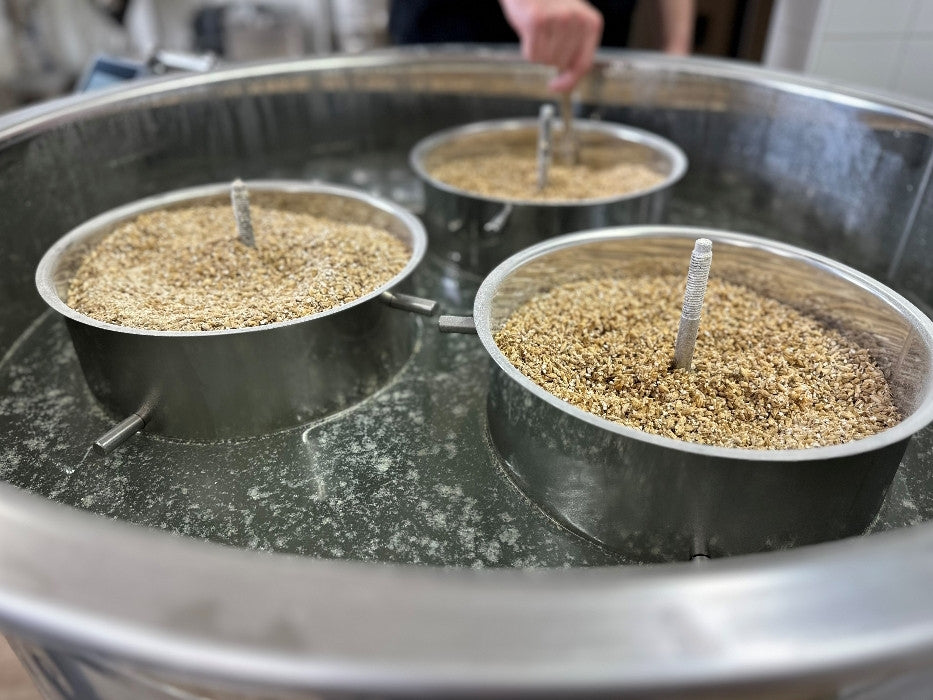

Easy operation with the malt pipe system
Thanks to the malt pipe system, the whole brewing process can be carried out without heavy lifting or complicated equipment. That makes the Braumeister 100L well suited to different brewing spaces, from a compact brew room to a larger production facility. Everything you need to mash, boil and chill is integrated in one unit.

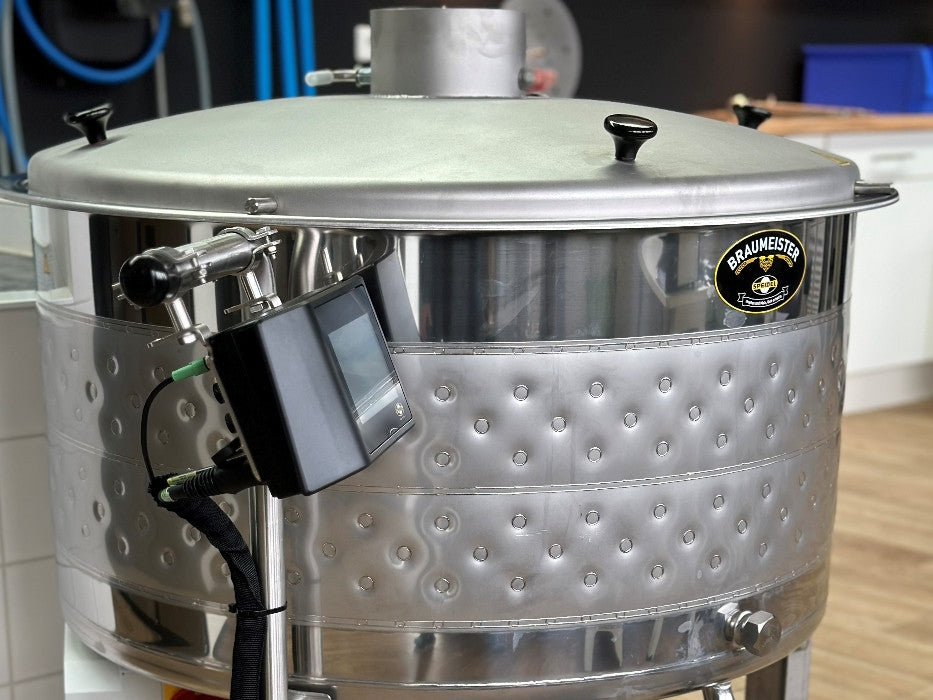

Sturdy design on wheels
The brewing system comes with a sturdy stainless steel frame on wheels, so you can easily move it when needed. The control unit can be adjusted in both height and angle, and the included pump unit makes it easy to transfer the wort to the fermenter.
Touchscreen control and Wi-Fi
The touchscreen control guides you through every step of brewing and shows quantities and ingredients along the way. Recipes can be synchronised automatically via the built-in Wi-Fi module, which also keeps the software up to date.
- Precise temperature control in all brewing phases
- Integrated ingredient database for easy recipe management
- Adjustable pump pauses
- Timer function for scheduled start of brewing
- Support for the Tilt Hydrometer, so fermentation data can be read directly into the control system
Technical specifications
- Weight: 77 kg
- Heating: 3 x 2000 W heating elements
- Pumps: 3 x 27 W, with adjustable speed
- Power supply: 400 V, min. 16 A fuse
- Total power consumption: 7 kW
- Cooling: approx. 0.6 m² cooling jacket for chilling with ice water (to 25 °C in about 50 minutes)
- Malt capacity: up to 21 kg, split between 3 malt pipes
- Outlet: 1" with butterfly valve (NW25), vertically downwards
- Cooling connection: 2 x 1" male thread at the back

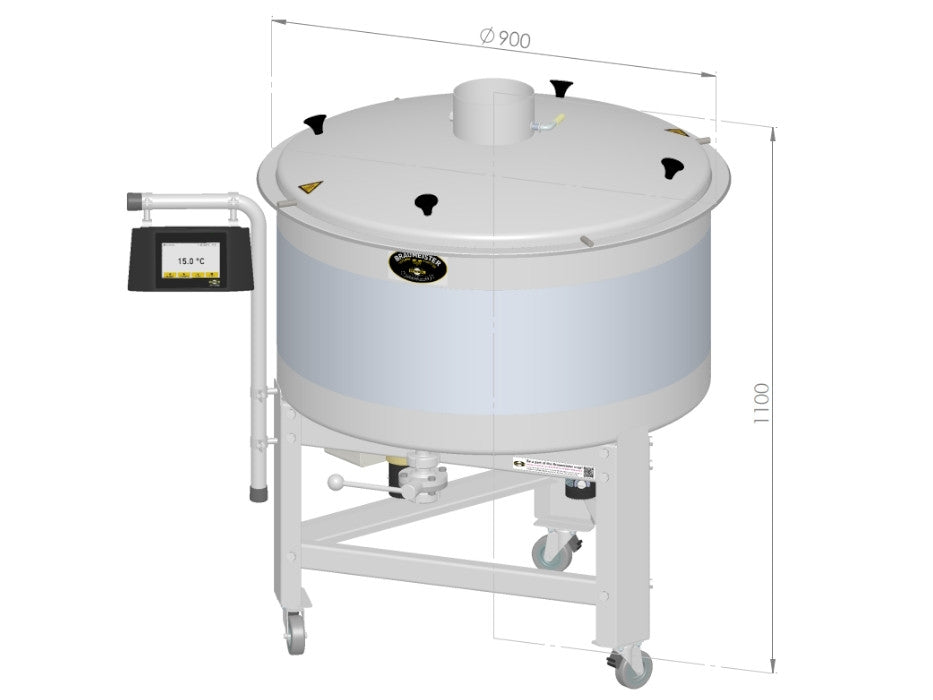

- Dimensions: diameter 90 cm, height 110 cm
- Wooden crate: 120 x 120 x 125 cm (L x W x H)
- Shipping weight: 100 kg
Frequently asked questions about the Speidel Braumeister 100L
How much beer can the Braumeister 100L brew?
The system produces up to 100–120 litres of finished beer per brew, with up to 21 kg of malt split between three malt pipes.
What power supply do I need?
The Braumeister 100L requires 400 V with at least a 16 A fuse. Total power consumption is 7 kW.
How is the wort chilled?
The system has a cooling jacket of about 0.6 m². With ice water, the wort is chilled to 25 °C in about 50 minutes.
What is the delivery time?
The Braumeister 100L is made to order, with normally 2 weeks delivery time.
